Heavy Duty Warehouse Multi-tier Steel Platform


Compare

ProGulf Shelving’s Steel Platform is made of cold rolled special shaped steel, with safe and excellent loading capacity, create more usable space. Also customized to fit your exact area, height, color and load requirements.

Warehouse steel platform (also named mezzanine floor system) is one rack system supported by rack uprights or profiles, which is consist of uprights, main beams, secondary beams(sub beams), floor boards, staircases, parapets and horizontal levels.

steel platform design

Steel platform take maximum advantage of the height of premises, doubling or tripling the surface area and enabling it to be fitted out as a storage area, changing room, or offices, etc. The installation of a Steel platform is an ideal solution to maximise the space available by taking advantage of the height of the building. all parts are totally dismountable and re-usable, and their structure, dimensions and location are easily modified.

Features & Advantages:

  • Quick to assemble, clean and easy.
  • Platform can be easily expanded, moved or modified for future requirements.
  • Compatible with most types of handling equiptments
  • Maximizes space use in any warehouse configuration while retaining optimum product accessibility
  • It can be complemented with a variety of shelving systems.
  • Suitable for high warehouses, storage small goods, manual access, large volume of storage
  • Adaptable to the specific needs of the client, owe to the great variety of sizes available, types of floors, construction systems, etc.

Product Specifications:

Load Capacity & Dimension
  • Loading capacity: 500-4,000 kgs UDL/beam level.
  • Height: 1,000-11,000mm
  • Depth: 400-1,500mm
  • Length: 1,500-3,300mm
  • Specail sizes also avaiable to specific storage needs.
Main Parts Specs
  • Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*90*2.0-2.5mm, etc.
  • Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 130*50*1.5,140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
  • Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Material
  • High-quality steel.
Finish
  • High-quality Powder Coated/Hot Dip Galvanized .
Color
  • RAL 7035, RAL 7001, RAL 6021, RAL 5015, RAL 1023, RAL 1007, RAL 2004, RAL 5017
Quick Delivery.
  • Within 25 days for ordinary order quantity.
CE certified.
  • CE,ISO9001:2000,TUV,SGS/CIQ/BV/CNCA

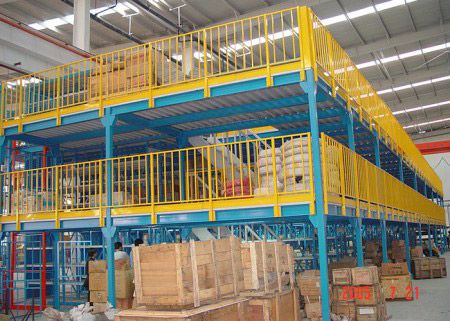

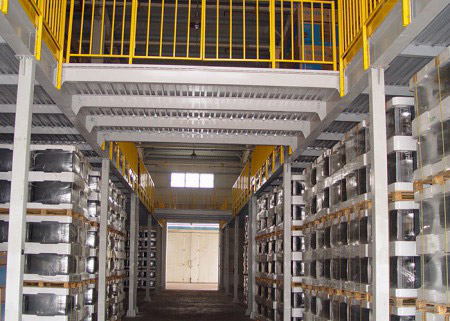

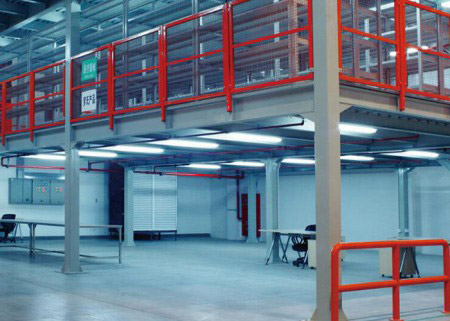

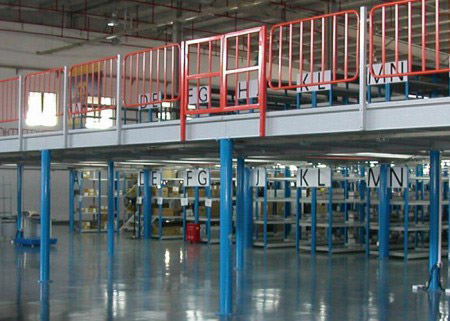

Product pictures

Steel-platform
