Push back pallet racking for warehouse storage

Push Back Pallet Racking are a perfect way to take optimal advantage of your warehouse while not having to slow product rotation or increase handling time. With the push back pallet racking system, the warehouse can store a larger number of pallets while maintaining more pallet positions than other high-density systems such as drive-in racking.

Push back rack system provides up to 90% more storage space than standard selective racks. That is the reason why this kind of dynamic pallet storage system is becoming more and more popular, and it quickly becomes the preferred storage method in many sectors.

If you are looking for Push back pallet racking design or more information, please call us now and we will work with you to provide layout and budget for your warehouse.

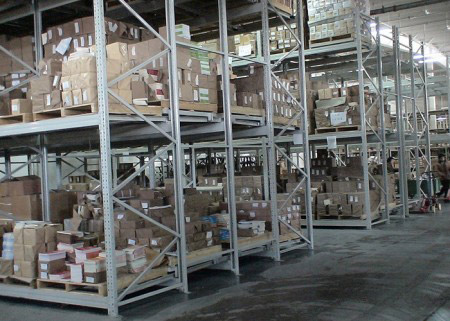

Push back pallet rack5


Features & Advantages:

  • Pallets can be located, accessed and moved individually.
  • Rapidly handle almost all types of palletised goods.
  • Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
  • Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
  • Strength and rigidity prevents compression from damaging to goods.
  • Bottom level of pallets can be stored on the floor to lowering structure costs.

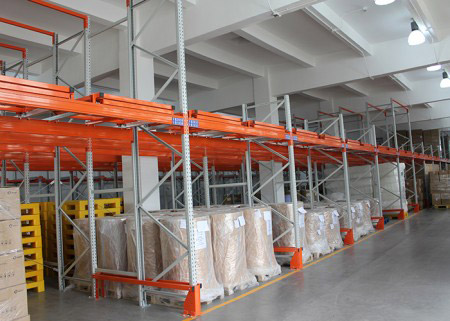

08-push back racking





Sample CAD layouts:

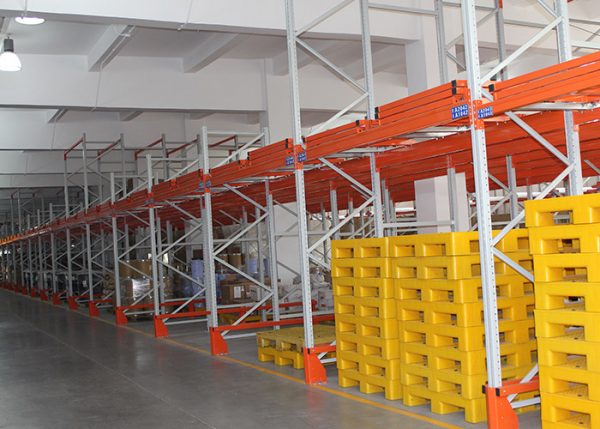

Push back pallet rack

Product Specifications:

Dimension & Load Capacity Length:1500-3600mmDepth: 400-1500mmHeight: 1000-11,000mmLoading capacity: 500-4000kg /levelSpecial size and loading capacity are also available
Main Parts Specs Upright section: 80*60*2.0, 90*60*2.0, 90*70*2.0,100*70*2.0, 120*75*2.0 etcBox beam section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5, 140*50*1.5, 160*50*1.5, 140*50*2.0, 160*50*2.0 etcHorizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components
Color RAL7035, RAL7001, RAL6021, RAL5015, RAL1023, RAL1007, RAL2004 or your requirement
Quick delivery Within 25 days for ordinary order quantity

Packaging & Shipping:

Gulf Shelving pay great attention to export package ,which aims at protecting our goods from being damaged during transportation, loading or unloading.Our packs can use forklift to unload the container easily and such can be able to greatly save labour cost.

push packing
