Warehouse Mezzanine Floors Systems.

ProGulf Shelving’s Warehouse Mezzanine Floors Systems is used for Racking Support Mezzanine or Platform to maximize the use of existing space to create more available space.

Mezzanine floors systems take maximum advantage of the height of premises, doubling or tripling the surface area and enabling it to be fitted out as a storage area, changing room, or offices, etc. The installation of a mezzanine is an ideal solution to maximize the available space by making use of the height of the building. Mezzanine floors are totally dis-mountable and re-usable, and their structure, dimensions and location are easily modified, which Loads within 500kg per square meter.


  • Quick, easy and clean to assemble.
  • Mezzanine floors are totally dis-mountable and re-usable
  • The lifting of loads can be done using manual handling machines,cranes or even by hand when the load allows this option.
  • Versatility and flexibility to meet any storage needs;
  • The most commonly use for palletised goods in all storage systems;
  • Compatible with most types of handling equipment;
  • Maximizes space use in any warehouse configuration;
  • More than 300 workers enable us to guarantee the delivery time, normal orders within 20 days;

Product Specifications:

    Product Name

Free design Warehouse Mezzanine Floors Systems

Customized Specification

Rack Supported Mezzanine is available in a range of sizes and configurations. Please call or email us and we can work together to get the most cost-effective and practical solution.

Upper/Lower Rack Levels

2 levels, 3 levels, 4 levels, 5 levels

Rack Load Capacity

300KG, 500KG, 700KG, 1000KG, 1500KG per level

Catwalk/Aisle Width

800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm

Catwalk or Aisle Flooring

Load Carry Capacity

300KG, 500KG, 600KG per square meter

Raw Material

High quality cold rolling steel

Material Thickness

1.5mm, 1.8mm, 2.0mm, 2.5mm

Surface Treatment

deoil, derusting and powder coat paint finish

Mezzanine Colors

standard blue, orange and customized available


Product Part:

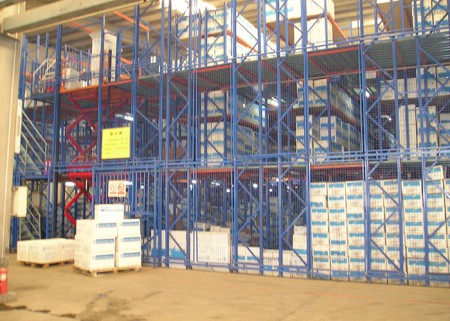

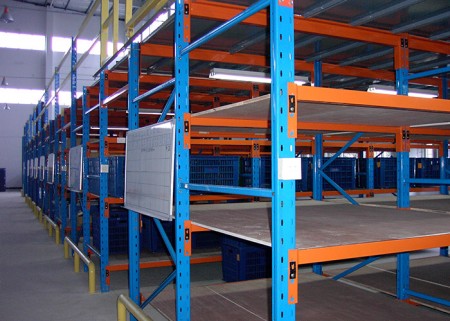

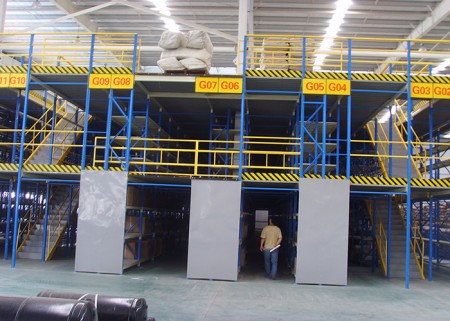

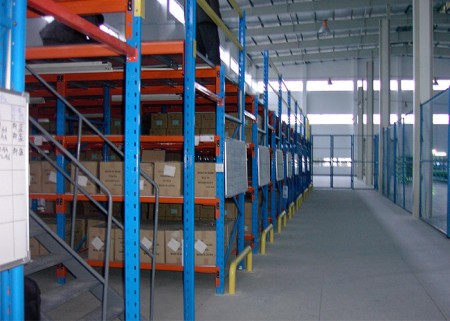

ProGulf Shelving supply three kinds of the mezzanine flooring systems, please see below the pictures:

MF0001 Here we would like to recommend the perforated open plank to you and your market. There are two sizes, 200x40mm and 230x40mm for options, see below: MF0002Some pictures of our open plank: Mezzanine-floor

Product Packing:
