Warehouse VNA Racking System

Gulf Shelving’s VNA Pallet Racking consists of the same basic components as conventional racking but with runs placed closer together eliminating the wasted space of a wide aisle.

VNA Racking System is derived from the selective pallet racking, and only the floor guide rails are equipped. (Some trucks with magnetic conductance does not need floor guide rails). The narrow aisle racking handled with special handling equipment. The VNA truck with rotate mast or fork from left to right position to store in and pick up pallets from the aisle without turning. VNA truck can operate in margined aisle width and greater height than conventional truck.VNA

  • Narrow aisle pallet racking  is a special pallet rack with small aisle
  • VNA pallet racking can save more aisle to largen storage space
  • VNA pallet racking is easy install/dismantle
  • VNA pallet racking can load 1-2T/pallet, each level can load 4500kgs max;
  • level height can be adjusted by 75mm per pitch freely;
  • VNA pallet racking suits almost all types of palletized goods
  • Rapid through put and handling
  • Lowest level pallets can be placed on the floor
  • VNA pallet racking need special forklift match it


VNA very narrow aisle Specifications:

Name:          Vna Pallet Racks
Main Parts
  • Upright frame, Box Beam
  • Other accessories, such as: corner guard, column guard, pallet support bar, row spacer, etc.
Main Spec.
  • Upright section: 80*60*2.0, 76.2*76.2*2.0, 90*60*2.0, 90*70*2.0, 90*75*2.0, 100*67*2.0, 100*70*2.0, 100*75*2.0, 120*75*2.0, 120*90*2.0mm, 2.5mm is also available.
  • Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
  • Horizontal & diagonal braces: 40*24/34*1.3mm
  • Powder Coated/HDG/Black Raw
Delivery Time
  • Usually, within 15 days for ordinary order quantity
  • Big qty will make a special arrangement as your schedule.

Packaging & Shipping:

Gulf Shelving pay great attention to export package , aiming at protecting our goods from being damaged during transportation, loading or unloading . Our packs can use forklift to unload the container easily ,be able to greatly save labour cost.

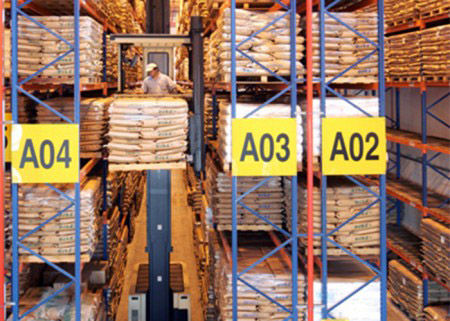

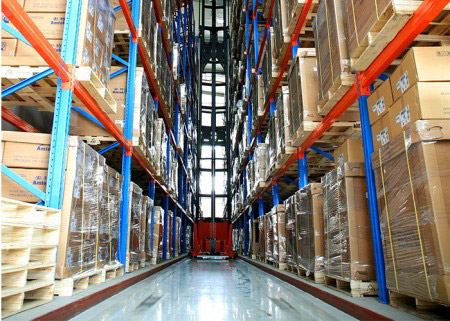

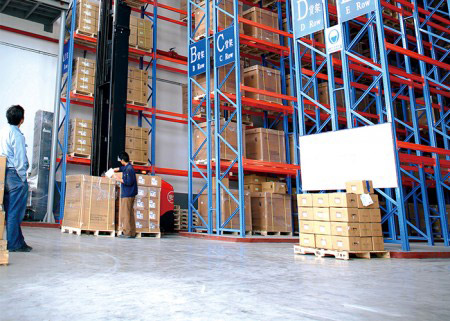

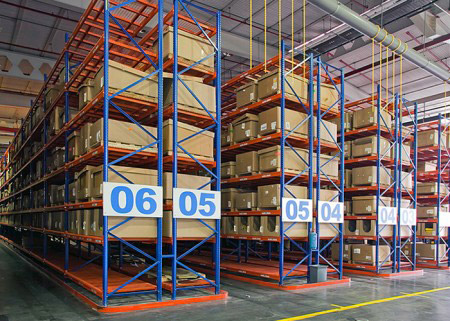

Product pictures

VNA rack1
