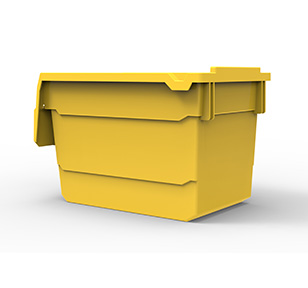

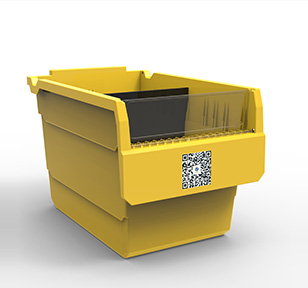

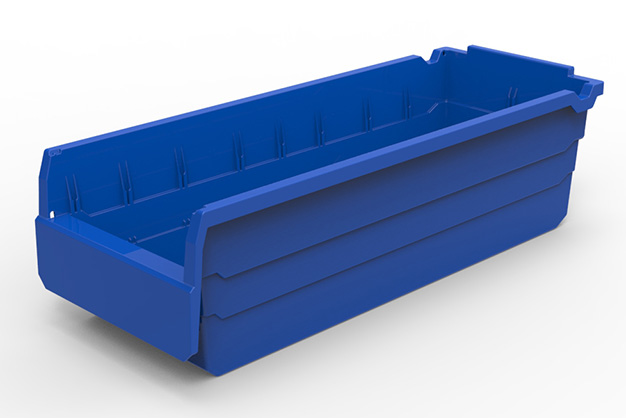

Shelfull bins GSSF5215


Made of high-strength polypropylene with reinforced bases, sides and rims.
Available in 18 sizes to store a wide range of different items.
Each bin could hold a maxemum of 8 SKUs and available for holding related SKUs.

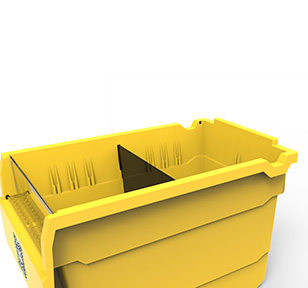

Width and length dividers multiply storage methods.
Woks with racking for maximum storage capacity.

Technical Datasheet ∨

  • Color:

    Red | Yellow | Blue | Green | White | Clear

  • Outside(L×W×H):

    498×197.5×153.1mm

  • Inside(top)(W×L):

    175×455mm

  • Inside(bottom)(W×L):

    152×420mm

  • Max. Height(H):

    153.1mm

  • Usable Height:

    142.8mm

  • Hanglock Height:

    8mm

  • Front Size:

    53×170mm

  • Weight:

    475g

  • Load Capacity:

    30kg

  • Hang Load Capacity:

    20kg

  • Material:

    PP

  • Temperature:

    -25℃——40℃

  • Accessories: Length Divider

    SFV515

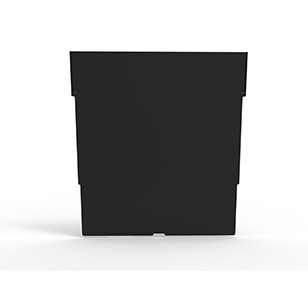

  • Accessories: Width Divider

    SFH215

  • Accessories: Front Plant

    SFF200

  • Drop Test(ISO2248-1985):

    Pass 3 meters free fallen test

  • Impact Test(Gardner Test):

    ≥144 in/Ibs

Specifications ∨

Packing Detail ∨

Carton size:510×405×405mm
Qty/ctn:10pcs/ctn
G.W.:5.7kg
Color label on the carton to show the part color

Other Details ∨


Length Dvider:SFV515
B1:1/2 divider slot
Min. distance between slot:80mm
Width Dvider:SFH215
A5:1/2 divider slot
Min. distance between slot:57.5mm

Front Plate:SFF200
