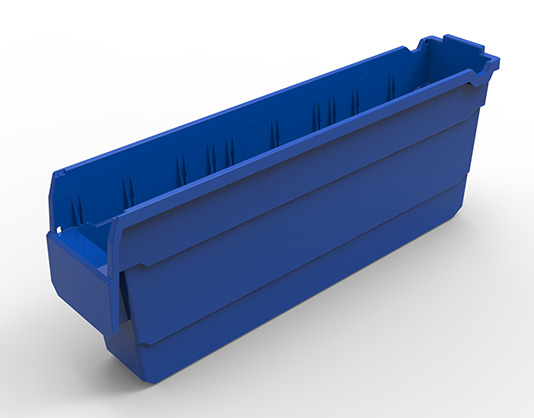

Shelfull bins SF5120

Made of high-strength polypropylene with reinforced bases, sides and rims.
Available in 18 sizes to store a wide range of different items.
Each bin could hold a maxemum of 8 SKUs and available for holding related SKUs.
Width and length dividers multiply storage methods.

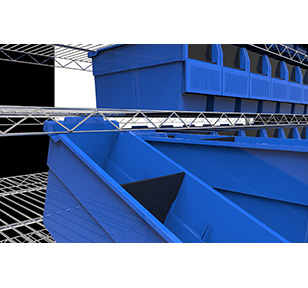

Woks with racking for maximum storage capacity.

Technical Datasheet ∨

  • Color:

    Red | Yellow | Blue | Green | White | Clear

  • Outside(L×W×H):

    500×99.4×203.5mm

  • Inside(top)(W×L):

    86.8×455mm

  • Inside(bottom)(W×L):

    58×415mm

  • Max. Height(H):

    203.5mm

  • Usable Height:

    193.5mm

  • Hanglock Height:

    8mm

  • Front Size:

    53×81mm

  • Weight:

    492g

  • Load Capacity:

    30kg

  • Hang Load Capacity:

    20kg

  • Material:

    PP

  • Temperature:

    -25℃——40℃

  • Accessories: Width Divider

    SFH120

  • Accessories: Front Plant

    SFF100

  • Drop Test(ISO2248-1985):

    Pass 3 meters free fallen test

  • Impact Test(Gardner Test):

    ≥216 in/Ibs

Specifications ∨

Packing Detail ∨

Carton size:510×405×455mm
Qty/ctn:20pcs/ctn
G.W.:10.8kg
Color label on the carton to show the part color

Other Details ∨

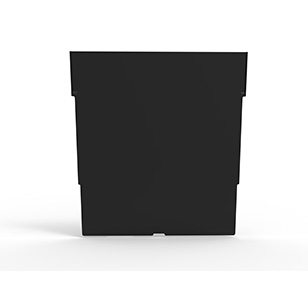

Width Dvider:SFH120
A6:1/2 divider slot
A4 A8:1/3 divider slot
A2 A3 A5 A6 A7 A9 A10:1/8 divider slot
Min. distance between slot:57.5mm

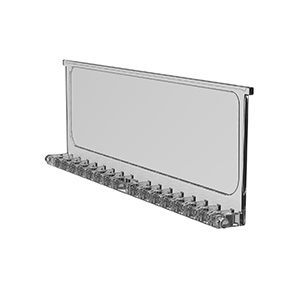

Front Plate:SFF100
