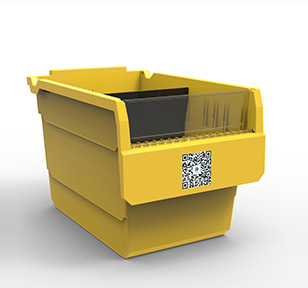

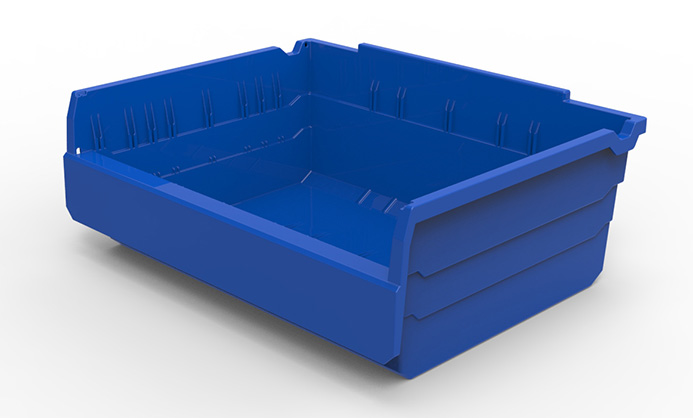

Shelfull bins GSSF3415


Made of high-strength polypropylene with reinforced bases, sides and rims.
Available in 18 sizes to store a wide range of different items.
Each bin could hold a maxemum of 8 SKUs and available for holding related SKUs.

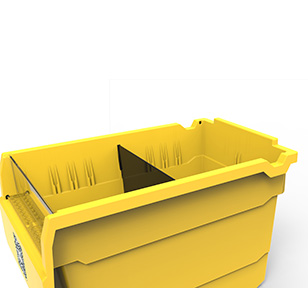

Width and length dividers multiply storage methods.
Woks with racking for maximum storage capacity.

Technical Datasheet ∨

  • Color:

    Red | Yellow | Blue | Green | White | Clear

  • Outside(L×W×H):

    301×397×151.5mm

  • Inside(top)(W×L):

    376.5×255mm

  • Inside(bottom)(W×L):

    351.5×220mm

  • Max. Height(H):

    151.5mm

  • Usable Height:

    142.9mm

  • Hanglock Height:

    8mm

  • Front Size:

    53×369mm

  • Weight:

    503g

  • Load Capacity:

    30kg

  • Hang Load Capacity:

    20kg

  • Material:

    PP

  • Temperature:

    -25℃——40℃

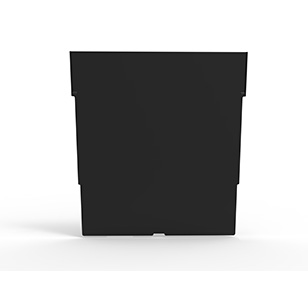

  • Accessories: Length Divider

    SFV315

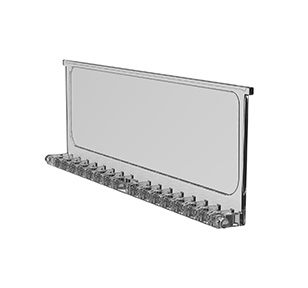

  • Accessories: Width Divider

    SFH415

  • Drop Test(ISO2248-1985):

    Pass 3 meters free fallen test

  • Impact Test(Gardner Test):

    ≥104 in/Ibs

Specifications ∨

Packing Detail ∨

Carton size:405×310×405mm
Qty/ctn:5pcs/ctn
G.W.:3.2kg
Color label on the carton to show the part color

Other Details ∨

Length Dvider:SFV315
B3:1/2 divider slot
B2 B4:1/3 divider slot
B1 B3 B5:1/4 divider slot
Min. distance between slot:90mm
Width Dvider:SFH415
A5:1/2 divider slot
A4 A6:1/3 divider slot
A2 A4 A5 A6 A8:1/6 divider slot
Min. distance between slot:40mm
