Technical Datasheet ∨
- Color:
Red | Yellow | Blue | Green | White | Clear
- Outside(L×W×H):
601×397×203mm
- Inside(top)(W×L):
375×555mm
- Inside(bottom)(W×L):
347×515mm
- Max. Height(H):
203mm
- Usable Height:
193mm
- Hanglock Height:
8mm
- Front Size:
53×369mm
- Weight:
1282g
- Load Capacity:
30kg
- Hang Load Capacity:
20kg
- Material:
PP
- Temperature:
-25℃——40℃

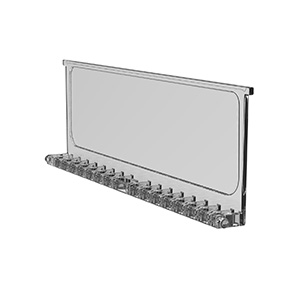

- Accessories: Length Divider
SFV620

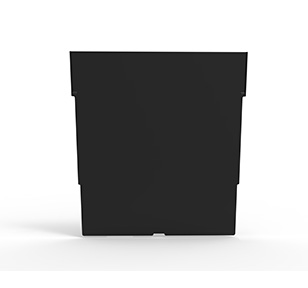

- Accessories: Width Divider
SFH420
- Drop Test(ISO2248-1985):
Pass 3 meters free fallen test
- Impact Test(Gardner Test):
≥120 in/Ibs
Specifications ∨
Packing Detail ∨
Carton size:610×405×455mm
Qty/ctn:5pcs/ctn
G.W.:8.2kg
Color label on the carton to show the part color
Other Details ∨
Length Dvider:SFV620
B1:1/2 divider slot
B2 B4:1/3 divider slot
B1 B3 B5:1/4 divider slot
Min. distance between slot:90mm
Width Dvider:SFH415
A6:1/2 divider slot
A4 A8:1/3 divider slot
A2 A3 A5 A6 A7 A9 A10:1/8 divider slot
Min. distance between slot:68mm
