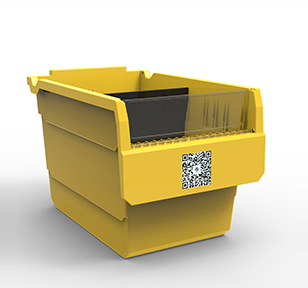

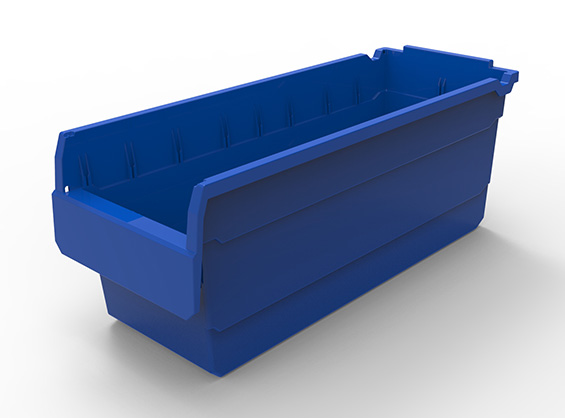

Shelfull bins GSSF5220


Made of high-strength polypropylene with reinforced bases, sides and rims.
Available in 18 sizes to store a wide range of different items.
Each bin could hold a maxemum of 8 SKUs and available for holding related SKUs.

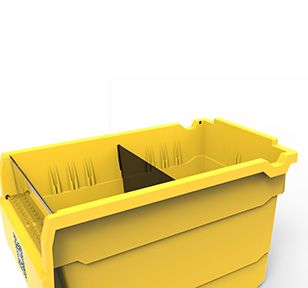

Width and length dividers multiply storage methods.
Woks with racking for maximum storage capacity.

Technical Datasheet ∨

  • Color:

    Red | Yellow | Blue | Green | White | Clear

  • Outside(L×W×H):

    500×196×203.5mm

  • Inside(top)(W×L):

    175.6×455mm

  • Inside(bottom)(W×L):

    152×415mm

  • Max. Height(H):

    203.5mm

  • Usable Height:

    193mm

  • Hanglock Height:

    8mm

  • Front Size:

    53×170mm

  • Weight:

    633g

  • Load Capacity:

    30kg

  • Hang Load Capacity:

    20kg

  • Material:

    PP

  • Temperature:

    -25℃——40℃

  • Accessories: Length Divider

    SFV520

  • Accessories: Width Divider

    SFH220

  • Accessories: Front Plant

    SFF200

  • Drop Test(ISO2248-1985):

    Pass 3 meters free fallen test

  • Impact Test(Gardner Test):

    ≥192 in/Ibs

Specifications ∨

Packing Detail ∨

Carton size:510×405×455mm
Qty/ctn:10pcs/ctn
G.W.:7.3kg
Color label on the carton to show the part color

Other Details ∨


Length Dvider:SFV520
B1:1/2 divider slot
Min. distance between slot:80mm

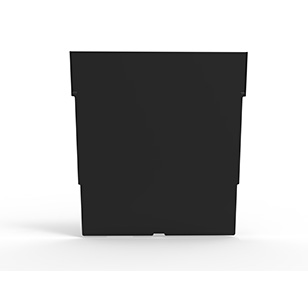

Width Dvider:SFH220
A5:1/2 divider slot
Min. distance between slot:57.5mm

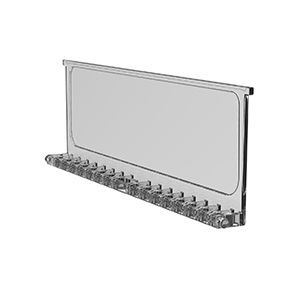

Front Plate:SFF200
