2.5 ton hand hydraulic pallet truck


PU Wheels make the movement extremely Easy with minimal human effort.
Sturdiness is very much suitable for rough & tough usage.

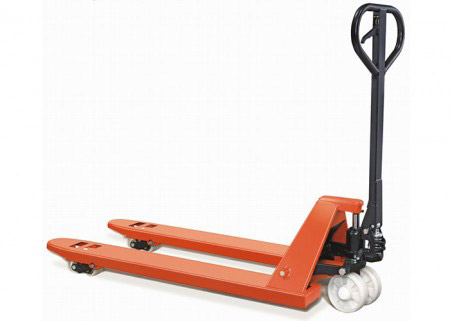

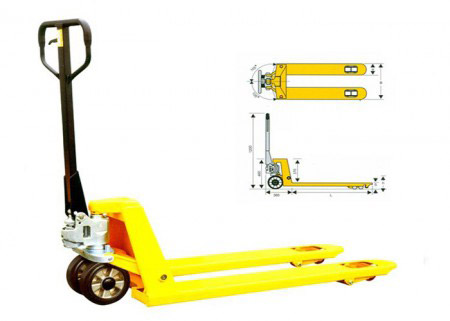

Hand pallet truck detail show:

hand-pallet-truck

SPECIFICATION MODEL MODEL MODEL MODEL
Load Capacity kg 2000 2500 3000 5000
Lift height H mm 190 195 195 190-200
Low Fork Height H mm 75 85 85 90
High Fork Height L mm 115 110 110 115
Fork Length L mm 550*1150 685*1220 550*1150  685*1220 550*1150  685*1220 550*1200  685*1200
Bracket Inner Width D mm 230 365 230 365 230 365 230 365
Bracket Single Fork mm 160 160 160 180
Front Wheel Diameter mm 70*60 80*70 80*70 85*66
Rear Wheel Diameter mm 180*50 180*50 180*50 180*52
Wheel Material NYLON/PU NYLON/PU NYLON/PU NYLON

Please note: Customized size and loading capacity are also available.

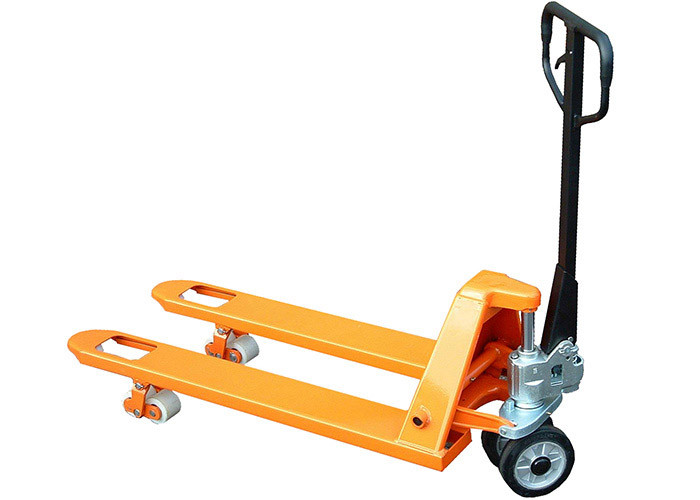

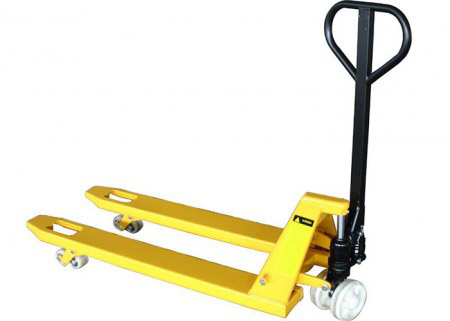

Product pictures
