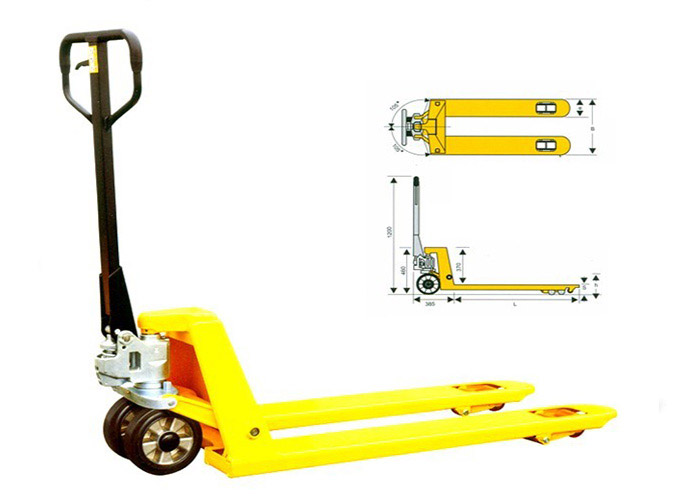

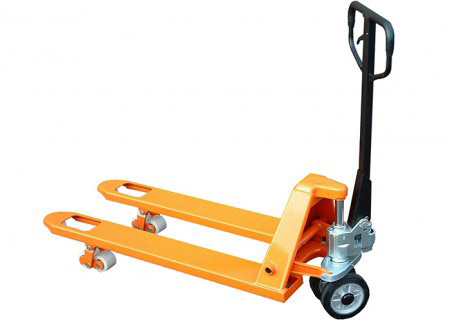

Hand pallet truck detail show:
SPECIFICATION | MODEL | MODEL | MODEL | MODEL | |
Load Capacity | kg | 2000 | 2500 | 3000 | 5000 |
Lift height H | mm | 190 | 195 | 195 | 190-200 |
Low Fork Height H | mm | 75 | 85 | 85 | 90 |
High Fork Height L | mm | 115 | 110 | 110 | 115 |
Fork Length L | mm | 550*1150 685*1220 | 550*1150 685*1220 | 550*1150 685*1220 | 550*1200 685*1200 |
Bracket Inner Width D | mm | 230 365 | 230 365 | 230 365 | 230 365 |
Bracket Single Fork | mm | 160 | 160 | 160 | 180 |
Front Wheel Diameter | mm | 70*60 | 80*70 | 80*70 | 85*66 |
Rear Wheel Diameter | mm | 180*50 | 180*50 | 180*50 | 180*52 |
Wheel Material | NYLON/PU | NYLON/PU | NYLON/PU | NYLON |
Please note: Customized size and loading capacity are also available.
